Investigating DCAs

Investigating DCAs

What is a DCA?

It has been known for a long time that honey bee drones fly to Drone Congregation Areas and will mate with virgin queens attracted to the DCA, usually from further afield. Some research has been conducted on the subject, (see Mating Biology of the Honey Bee) but there is some conflicting evidence concerning topographical and racial influences, with many questions remaining unanswered. How does that conflicting evidence translate to Devon beekeeping?

The Drone Whisperers

Richard Simpson (East Devon branch), Graham Kingham (Exeter branch) and Peter Weller (East Devon branch) have been investigating DCAs to attempt to find some answers. It started as a project by the Devon Apicultural Research Group (DARG) and has progressed to the point where several articles have been published in Devon BKA’s magazine, Beekeeping, and also reproduced in An Beachaire (The Irish Beekeeper). A further update will come out shortly.

Drone

Drone honeybee

Why does it matter?

Because it is interesting and will further our knowledge of the honey bee! In addition, it may help to improve the matings in your apiary, or help avoid diseases passed on by dubious drones.

Our three intrepid “Drone Whisperers”, Richard Simpson, Graham Kingham and Peter Weller, (with help from Alfie), have been investigating for a couple of seasons so far.

The Drone Whisperers

The mating process explained

Graham describes the mating mechanics of the honeybee in his book Honey Bee Drones – Specialists in the Field (see references).

Some drone statistics:

  • The drone is about 2.5 times larger than the worker, has larger specialised antennae and much bigger eyes.
Drone Worker Queen
Antennal sensors 15-16,000 2,600 1,600
  • Drones have 4 dedicated brain complexes sensitive to queen pheromone.
  • Queens fly to the DCA where their pheromone is readily detected.
  • The drones have much larger eyes and can see the queen from about 50 metres away.
  • Drones also produce a mandibular pheromone which plays an important part in the DCA, probably by attracting other drones, and possibly the queen.
  • Drones generally congregate at specific sites, year after year. This information cannot be passed on to the next generation of drones as drones don’t survive the winter, so how do they maintain the same site?
  • The drones form a comet behind the queen as she enters the DCA, where successive matings take place. As each drone completes mating they fall backwards, leaving the mating sign in the queen’s mating chamber. This will be removed by the next drone to mate, and so on. The drones that have mated will die shortly afterwards.
  • The queen usually mates with an average of 15 drones, but greater numbers have been recorded.
  • She returns to the hive where the last mating sign is removed by the workers.
  • It is possible for a queen to take more than one mating flight. Most of the sperm with which the queen has been impregnated is subsequently expelled (a single drone can fill her storage capacity) but a proportion is mixed and kept alive in her spermatheca for use over her life.

The Starting Point

Relevant questions to ask are:

  • Which season? Time of day? Conditions, e.g. temperature, wind and weather?
  • Where does mating take place? What is a likely spot for a DCA?
  • How can we find the DCA?

Answers to some of the questions are already known, but much isn’t.

When?

Drones fly when the air temperature is higher than 19°C, but some races may make flights in cooler conditions. Wind speed needs to be below 4-6 m/sec (9-13 mph). Flights take place roughly between 13:00 and 17:00. On their return to the nest, they refuel for another flight, and may make 5 flights during one afternoon.

Where?

Classically, drones are reported to patrol at between 50 – 200 ft (15 – 65m). Flight speed is 12 – 15 mph with 96% of flights within an average of 0.9km from the nest. Drones have approximately a 25-minute range, although longer flights have been observed, possibly due to drones resting or refuelling in other hives.

How do you find the DCA?

This is the difficult bit as there do not appear to be universal, clearly defined rules. Investigators have studied such factors as direction of flight, open ground, tree cover next to shelter, flat v sloping locations, landmarks and areas of high solar radiation, with mixed results.

Peter Weller has researched some of the computer-aided studies attempting to predict DCA locations. Realistically, there is some way to go before we can confidently use these techniques.

Some research suggests DCAs can be found where there is a “depletion” in the horizon, e.g., a valley bottom framed by hills/mountains, but how would you apply that to flat fenland?

So, our intrepid Drone Whisperers embarked on a more practical approach, walking the search grounds with an elevated lure. This consisted of a synthetic queen pheromone called 9-ODA, eventually obtained from Canada, applied to a 2cm twig. The dry crystals were sub-divided into portions equivalent to 50 virgin queens enabling batches to be made up.

Lure preparation

Lure preparation

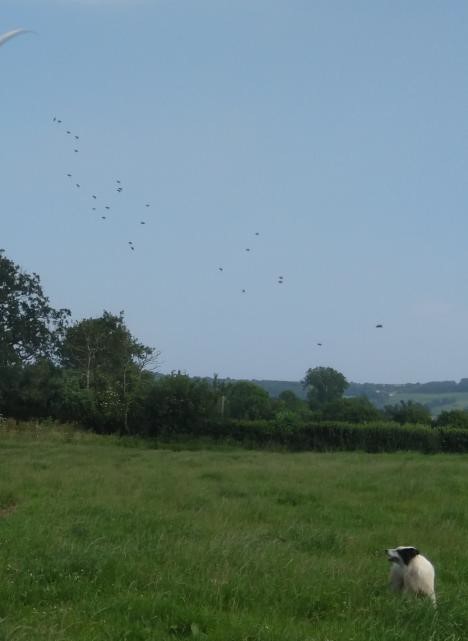

Alfie watching drones

Alfie watching drones

Drones attracted to lure

Drones attracted to lure

Balloon setup

Balloon setup

Drone catching net

Drone catching net

Net lift off

Net lift off

Netted drones

Netted drones

Eventually, it worked! See Alfie watching drones.

Having found some hotspots, the focus moved to lift the lure higher. Helium balloons were tried, with limited success. The wind tended to force the line and lure nearer the ground instead of lifting to greater height.

Sufficient lift to raise a capture net, from which drones could be retrieved and marked, was eventually obtained with 11 balloons, only to find a strong gust dragging it down on the opposite side of a hedge. When extricated, it floated again but it then became apparent it had become detached from its tether. It was last seen heading in the direction of Axminster at cloud level.

As a substitute, catching drones with a hand-held net was tried, with reasonable success. 55 drones were marked and released. Late in the day, one was seen in Richard’s apiary nearby.

The classical idea of a DCA is that you are either in it and surrounded by drones, or you are outside the boundary and few drones are to be seen, or heard. Experiments at Musbury Castle did not demonstrate such a distinct demarcation.

Where to next?

Initially, it is intended to carry out further mark, track and trace exercises at existing sites. Other target sites in East Devon have also been identified and will be investigated. Further afield, a protocol has been created for identifying and reporting wider results. This will enable others to undertake local researches and produce common results. There is great scope for some original Citizen Science with this project. Watch this space.

References

Mating Biology of the Honey Bee, by Koeniger, Koeniger, Ellis, Connor – ISBN: 9781878075383

Honey Bee Drones – Specialists in the Field – ISBN: 9781912271528 – Graham Kingham

Honey Bee Drones
